瑞典DVPOWER CAT500断路器机械特性分析仪由爱仪器仪表网代理，CAT500引入了一些独特的测试功能，大大节省了对所有类型的中高压断路器进行状态评估所需的时间。现在热卖中，如需购买，可通过ai1718.com的客服热线联系我们！

高压环境下的*测量
10.1 英寸触摸屏显示器
定时、运动和振动测量
通过单电缆连接和同时测量缩短了测试时间
CAT 模块，用于在 BSG 条件下对多达 12 个主触点室进行静态/动态电阻测量
用于BSG条件下单极控制GIS CB定时测量的GIS模块

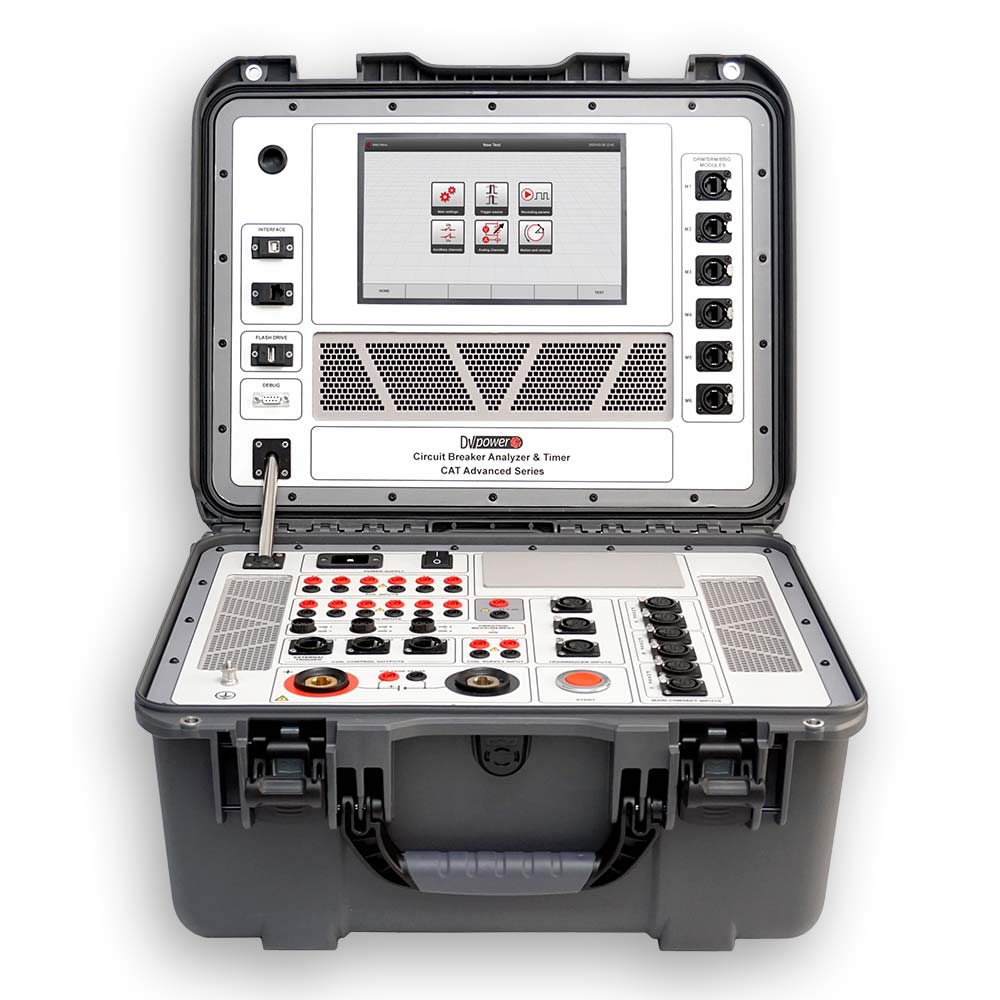

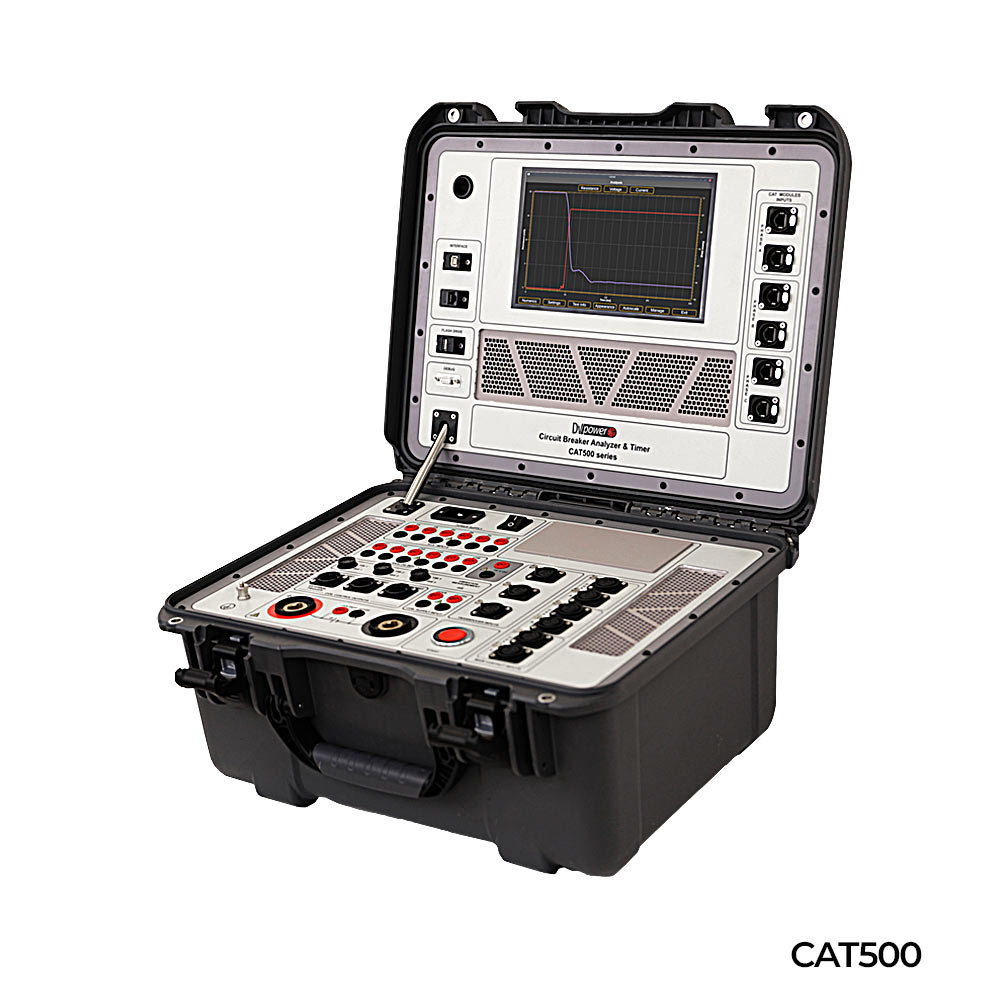

瑞典DV-power断路器定时器和分析仪 CAT500说明

瑞典DV-power断路器定时器和分析仪 CAT500总结了我们过去13年在断路器测试设备设计方面的所有经验和知识。
CAT500 引入了一些独特的测试功能，大大节省了对所有类型的中高压断路器进行状态评估所需的时间。
定时通道记录主电弧、电阻器和辅助触点的闭合和断开。主触点通道还可以测量预插入电阻器（如果存
在于断路器中）的电阻值。
CAT500 记录 HV 和 MV 断路器移动部件的开合线圈电流和位移曲线图。六个线圈控制模拟通道可以同
时启动操作、测量和记录线圈电流（开和关），*高可达 35 A。
触摸屏彩色显示屏可轻松控制测试设备和结果分析。测试结果以表格和图形形式打印在 112 毫米（4.4 英寸）
热敏打印机（可选附件）上。

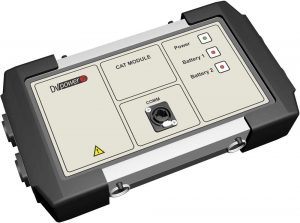

瑞典DV-power断路器定时器和分析仪 CAT500 CAT 模块

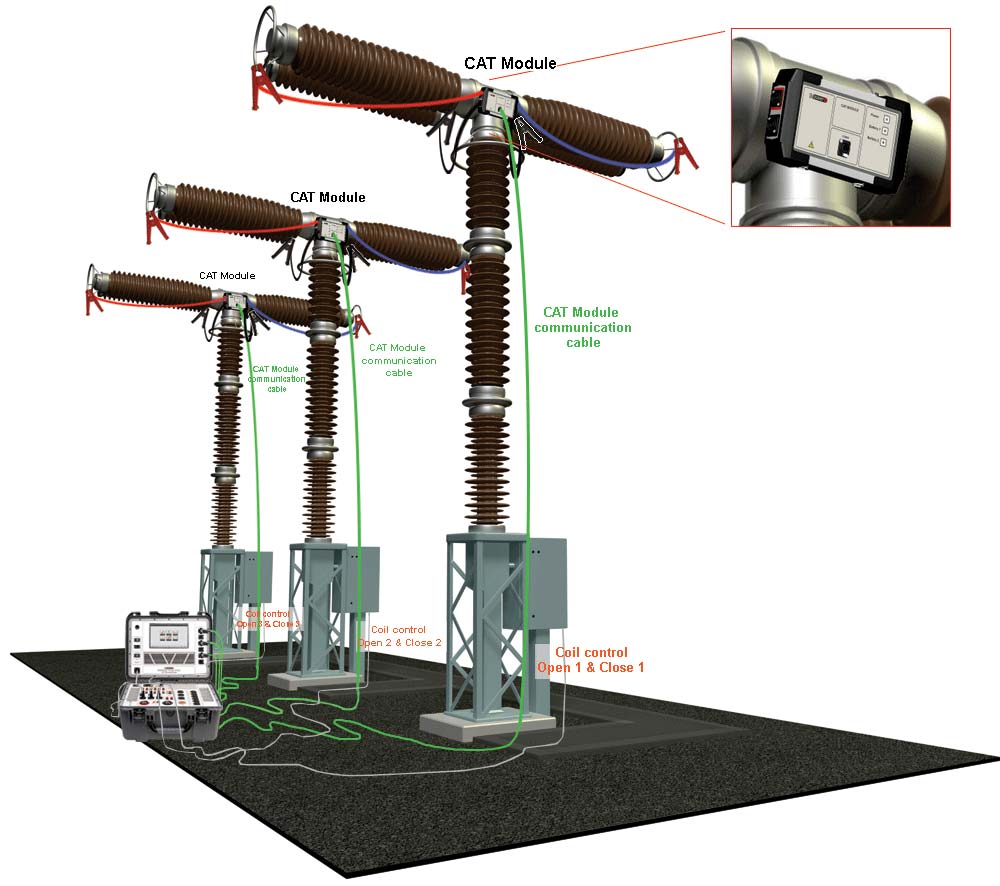

CAT 模块可测量两侧接地 (BSG) 的 AIS（空气绝缘变电站）断路器的主电弧触点定时、静态和动态电阻。

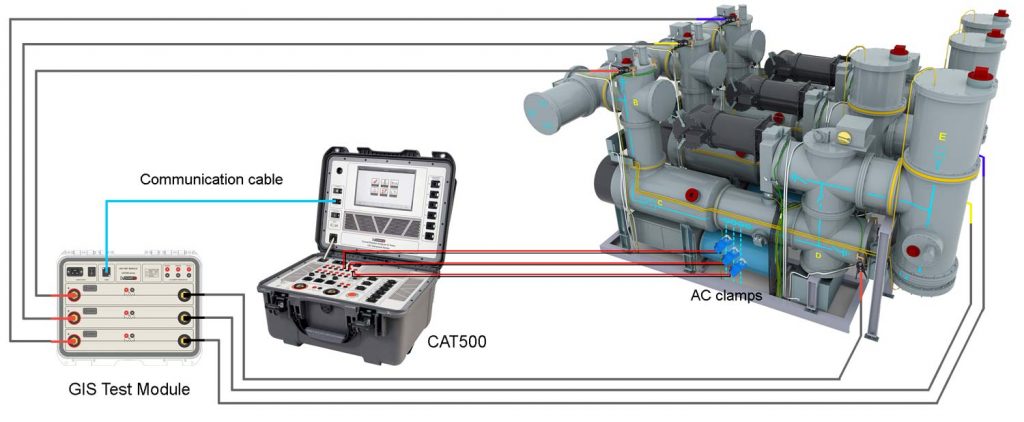

GIS测试模块
两侧接地的 GIS 断路器的定时测量适用于*苛刻的测试情况，例如单极操作的 GIS CB，其极外壳电阻非常低，
或 CT 不能包含在测试接入点之间的测量电路中.
GIS 测试模块由三个基于电池的隔离电源组成，用于为单极受控 CB 的每个极提供大电流。
测试电流在每极 400-500 A 的范围内（取决于电池充电水平和测试电路的电阻）。

不是测量 CT 次级电流信号的变化（当它在接地开关电路之外时），而是在电源内监测初级注入电流的变化。

CAT500 订购信息
Instrument	Article No.
Circuit Breaker Analyzer &Timer CAT500 with 3 timing channels	CAT500-03-01
Circuit Breaker Analyzer &Timer CAT500 with 6 timing channels	CAT500-06-01
Circuit Breaker Analyzer &Timer CAT500 with 12 timing channels	CAT500-12-01

Included accessories
Windows based DV-CB PC software
USB cable
Ethernet cable
Debug adapter
Mains power cable
Ground (PE)cable
Transport case

Standard accessories	Article No.
Simultaneous timing,static (contact)resistance and dynamic resistance measurement
CAT Module -for timing,static and dynamic resistance measurement recording	CAT-MODUL-00
Communication cable 1 x 15 m for CAT module	C1-0015-RXX
Current and sense cables 2x 3,5 m(red)with SCT clamps for CAT Module	CSR-3Z5-15NCST
Current and sense cables 2x1,5 m(black)with SCT clamps for CAT Module	CSB-1Z5-15NCST

Control cabinet cables
Coil control cable set 5 m(16.4 ft)with banana plugs (Single-pole control -6 coil channels)	CO-05-6BC5B1
Coil supply cable set 4x5 m 2,5 mm²(16.4 ft,13 AWG)with banana plugs	CS-05-02BPBP
Auxiliary contacts cable set 12x5 m(16.4 ft)with banana plugs	AX-05-02BPBP
Analog channels cable set 12x5 m(16.4 ft)with banana plugs	AN-05-02BPBP
Cases
Plastic case for CAT modules (up to 2 breaks)	PLCAS-CAT-03
Cable plastic case -large size (x2)	CABLE-CAS-03

Optional accessories	Artide Na
GIS Test Module for Both Sides Grounded (BSG)on GIS (Gas Insulated Substa ion)	BSG-CATGIS-1
Minimum Trip Voltage Module (bult-n,compatble with CAT250 and CAT50 Senes excluding a thermal pninter	MTV-MODUL-00
Thermal printer 112 mm 44.4 inch)(bull-in,excluding Minimum Tnp Valt age Module)	PRINT-112-01
Thermal paper roll 112 mm (4.4 inch)	PRINT-112-RO
Built-in high precision measurement modue	RMO-HPMM-DG0
Current clamp 30V300 A power supplied from the instrument with extension 5 m(16.4 ft)and adapler	CACL-0300-07
Curert clamp 30/300 A with inlernal batlery supply and exlension 5m(16.4 fp	CACL-0300-08
AC Current clamp 1 A/1V with 5 m cable and adapter	CACL-ACBP-05
Main contact cables
Main contact cales 5 m(16.4 ft)with SCT camps (forthree timing chennek)	CM-05-34MXST
Main contact cales 5 m(16.4 ft)wth SCT camps (forsi fining crarnds)	CM-05-65MXST
Main contact cabes 5 m(16.4 fp with SCT clamps (ortwelve timing crarnels)	CM-05-12MXST
Main contact cabfes extensian
Main contact cabes extenson 5m (16.4 t)(or tfree or six tning chands)	E3-05-65MXFX
Main contact cabes extension 5 m (16.4 t)for welve timing channds)	E6-05-12MXFX
Main contact cabes extension 10 m (32.8 t)(or tfree or six tning chamds)	E3-10-65MXFX
Main contact cales extension 10 m (32.8 t)(or twelve lining channels)	E6-10-12MXFX
Main contact cables extension 15 m (49.2 t)(or tfree or six tning chands)	E3-15-65MXFX
Main contact cables extension 15 m (49.2 t)(or twelve tining channels)	E6-15-12MXFX
Con trol cabinet cables
Coll control cable set 10 m with banana plugs (Single-pole control -6 coll channels)	CO-10-6BC5B1
Coll control cable set 15 m with banana plugs (Single-pole control -6 coll channels)	CO-15-6BC5B1
Coll control cable 5 m wth banana pugs (Three-pole control -2 call channeks)	CO-05-00C5B1
Coll control cable 10 m wth banana pugs (Thee-pole control -2 coll channels)	CO-10-00C5B1
Col contrdl cabe 15 m wth banana plugs (Three-pole control -2 cod channels)	CO-15-00C5B1
Auxihary contacis cable set 12x 5 m with banana plugs	AX-05-02BPBP
Auxlhary contacts cale set 12x 10 m with banana plugs	AX-10-02BPBP
Auxlhary contacts cale set 12x 15 m with banana plugs	AX-15-02BPBP
Analog channets calble set 12 x 5 m with banana plugs	AN-06-02BPBP
Analog channee cale set 12 x 10 m with banana plugs	AN-10-02BPBP
Analog channee cale set 12 x 15 m with banana plugs	AN-15-02BPBP
Cable cases
Cable plastic case -medium size	CABLE-CAS-02
Cable plastic case with wheels -medum sze	CABLE-CAS-W2
Cable plastic case -large size	CABLE-CAS-03
Cable plastic case with wheels -large size	CABLE-CAS-W3

Current cables
Currert cables 2x5m 50mm²(32.8 tt,0AWG)with battery damps (for buit in 500 Amiao ohmmeter)		C2-05-50VMB3
Currert cables 2x10m 50mm²(32.8 tt,0 AWG)with battery damps (for buit in 500 Amicro ohmmeter)		C2-10-50VMB3
Currert cables 2x15m 70 mm?(49.2 tt,00 AWG)with battery damps (for buit in 500 Amico ohmmeter)		C2-15-70VMB3
Currert cables 2x5m 25mm?(32.8 tt,3 AWG)with battery clamps ffor buit in 200 A micro ohmmeter		C2-05-25LMB1
Curert cabes2x10m 25mm²(328 tt,3 AWG)wih battery clamps (for buit in 200 Amico ohmmeter)		C2-10-25LMB1
Currert cabes 2x15m35mme(49.2 t,2 AWG)with battery damps (for buit in 200 Amico ohmmeter)		C2-15-35LMB1
Sense cables
Sense cales 2x5 m (32.8 ft)with alligalor damps (for buit in micro chmmeter		S2-05-02BPA1
Sense cables 2x10 m (32.8 ft)with alligator damps (for buit in mico ohmmete)		S2-10-02BPA1
Sense cales 2 x15 m (49.2 ft)with alligalor damps (for buit in micro cnmmete)		S2-15-02BPA1
Tran sducers
Digital rotary transducer wth 5 m(16.4 ft)connection cale		DRT-250-C605
Digital rotary transducer wih 10 m (32.8 ft)connection cabe		DRT-250-C610
Digital rotary transducer with 5 m(16.4 )connecion cable with accessones		DRT-SET-0006
Digital rotary transducer with 10 m (32.8 t)conneclion cabe wth accessones		DRT-SET-0010
Linear analog transducer 150 mm(5.9 in)wih 5m (16.4 tt)connec ion cale and inear transducer rod		LAT-150-C305
Linear analog transducer 225 mm (8.85 in)with 5 m (16.4 f)connec ion cable and lnear transducer rod		LAT-225-C305
Linear analog transducer 300 mm(11.8 in)with 5m(16.4 tt)connection cable and inear transducer rod		LAT-300-C305
Lnear analog transducer 500 mm(19.68 in)with 5 m (16.4 f)connec ion cable and lnear transducer rod		LAT-500-C305
Tran sducer mounting kits
Unversal transducer mourting ki		UTMKIT-0000
Unversal transducer mourting kit -extended version		UTMKIT-0001
Doble trans ducer adapter		DTA-BOX-C002
Linear to rotary cowertor		LTR-CON-0000
Online first tnp test kit
Online first tnp lest kit-single-pole control		ONFTT-KJT-00
Online first tnp test kit -three-pole control		ONFTT-KJT-01
Piastic transport eas
Transport case for 500 senes		HARD-CASE-NC
Transpont case tor 500 senes ith wheels		HARD-CASE-NW

CAT500断路器分析仪和计时器规格
电源供应
根据 IEC/EN60320-1; UL498, CSA 22.2连接
电源	90 V - 264 V AC
频率	50/60 Hz
I输入功率	3900 VA
保险丝15 A / 250 V，快速反应，但不是用户可更换
适用标准
安装/过电压	第二类
污染	2度
安全	LVD 2014 / 35 /欧盟（CE符合）标准EN 61010-1
EMC	指令2014 / 30 /欧盟（CE符合标准EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
环境条件
操作温度	-10 ºC - + 55 ºC / 14 ºF - +131 ºF
存储和运输	-40 ºC - + 70ºC / -40 ºF - +158 ºF
湿度	度5% - 95%相对湿度
尺寸/重量
尺寸(宽 x 高 x 深):	505 mm x 490 mm x 257 mm 19.9 in x 16.1 in x 10.1 in
重量	15-17 kg
