瑞典DV POWER CAT250 断路器分析仪和定时器-爱仪器仪表网

瑞典DVPOWER CAT250 断路器分析仪和定时器由爱仪器仪表网代理，CAT250 系列继承了市场*的CAT Advanced系列的所有功能和经验。CAT250引入了独特的触摸屏界面。现在热卖中，如需购买，可通过ai1718.com的客服热线联系我们！

CAT250 断路器分析仪和定时器介绍：

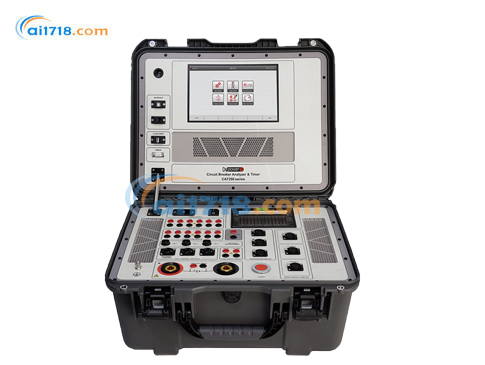

CAT250系列继承了市场*的CAT Advanced系列的所有功能和经验。
CAT250引入了独特的触摸屏界面，旨在显着节省各类中高压断路器的测试准备和结果分析所需的时间。
测试结果也可以以表格和图形形式打印在 112 毫米（4.4 英寸）热敏打印机（可选附件）上。

CAT250 断路器分析仪和定时器特点：

CAT250 系列断路器分析仪和计时器可与 DV 电源线圈分析仪 SAT II 系列结合使用，创建一个测试系统（通过 CAT250 触摸屏界面完成控制和测试），能够执行以下应用列表：
同时定时测量多达 12 个主触点（每相 4 个断路），包括预插入电阻器（如果断路器中存在）和 6 个辅助触点
预插入电阻器的电阻测量（如果断路器中存在）
断路器极间同步评估
测量线圈电流、电压和电阻（同时测量 3 个线圈 - 在打开或关闭序列期间）
通过以图形方式显示电压值来评估变电站电池的状态
测量断路器运动部件的位移、触擦、超程、回弹、阻尼时间和平均速度
断路器振动指纹记录
“*次旅行”测试
静态电阻测量
动态电阻测量
测量弹簧储能电机时间、电流和电压（直流和交流电源电压，用作 CAT 和 SAT 测试系统时）
内置微欧表（可选）提供大电流，用于动态和静态电阻测量，以及死槽断路器的BSG定时测量。
附加的六个电压模拟通道有四个可选电压范围（±1V、±5V、±60V 和 ±300V AC/DC）。它们用于监控：
测量线圈电阻（同时测量 3 个线圈 - 在打开或关闭序列期间）
断路器变电站电池电压，
“*跳闸”测试期间的直流和交流电流，
用于 GIS 上 BSG 测试的 CT 二次电流
可能相关的其他类型的模拟信号。
三个振动通道输入记录断路器振动指纹，使用基于振动的分析对断路器主触点进行非侵入式评估。
三个传感器通道提供断路器运动部件的位移、触点擦拭、超程、回弹、阻尼时间和平均速度的测量。模拟或数字传感器都可以连接到这些通用通道。
测试结果以表格和图形形式打印在 112 毫米（4.4 英寸）热敏打印机（可选附件）上。

CAT250订购信息
Instrument	Article No
Circuit Breaker Analyzer &Timer CAT250 with 3 timing channels	CAT250-03-01
Circuit Breaker Analyzer &Timer CAT250 with 6 timing channels	CAT250-06-01
Circuit Breaker Analyzer &Timer CAT250 with 12 timing channels	CAT250-12-01
Included accessories
Windows based DV-CB PC software
USB cable
Ethernet cable
Mains power cable
Ground (PE)cable
Debug adapter
Transport case
Recommended accessories		Article No
Main contact cables
Main contact cables 5 m(16.4 ft)with SCT clamps (for three timing channels)		CM-05-34MXST
Main contact cables 5 m(16.4 ft)with SCT clamps (for six timing channels)		CM-05-65MXST
Main contact cables 5 m(16.4 ft)with SCT clamps (for twelve timing channels		CM-05-12MXST
Main contact cables extension
Main contact cables extension 10 m(32.8 ft)(for three or six timing channels)		E3-10-65MXFX
Main contact cables extension 10 m(32.8 ft)(for twelve timing channels)		E6-10-12MXFX
Control cabinet cables
Coil control cable set 5 m(16.4 ft)with banana plugs (Single-pole control -6 coil channels)		CO-05-6BC5B1
Coil supply cable set 4x5m 2,5 mm²(16.4 ft,13 AWG)with banana plugs		CS-05-02BPBP
Auxiliary contacts cable set 12x5 m(16.4 ft)with banana plugs		AX-05-02BPBP
Analog channels cable set 12x5 m(16.4 ft)with banana plugs		AN-05-02BPBP
Current cables
Current cables 2x10 m 50 mm²(32.8 ft,0 AWG)with battery clamps for built in 500 A micro ohmmeter)		C2-10-50VMB3
Current cables 2x 10 m 25 mm²(32.8 ft,3 AWG)with battery clamps (f or built in 200 A micro ohmmeter)		C2-10-25LMB1
Sense cables
Sense cables 2x10 m(32.8 ft)with alligator clamps for built in micro ohmmeter)		S2-10-02BPA1
Cases
Cable plastic case -large size (x 2)		CABLE-CAS-03

Optional accessories	Article No
Micro ohmmeter 200 A (built-in)	BIMCAT5-2-00
Micro ohmmeter 500 A (built-in)	BIMCAT5-5-00
Both Sides Grounded (BSG)of AlS(Air Insulated Substation)for CAT250 -3 timing channels (one break per phase)	BSG-CAT25-03
Both Sides Grounded (BSG)of AlS (Air Insulated Substation)for CAT250 -6 timing channels (two breaks per phase)	BSG-CAT25-06
Both Sides Grounded (BSG)for Dead Tank Circuit Breaker for CAT250 series	BSG-CATDTB-O
Built-in high precision measurement module	RMO-HPMM-DGO
Current clamp 30/300 A power supplied from the instrument with adapter 5 m(16.4 ft)	CACL-0300-07
Current clamp 30/300 A with intermal battery supply and extension 5 m(16.4 ft)	CACL-0300-08
Thermal printer 112 mm (4.4 inch)(built-in)	PRINT-112-00
Thermal paper roll	PRINT-112-RO
Cable plastic case with wheels -large size	CABLE-CAS-W3
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)	CO-10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)	CO-15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control -2 coil channels)	CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control -2 coil channels)	CO-10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control -2 coil channels)	CO-15-00C5B1
Auxiliary contacts cable set 12 x5 m with banana plugs	AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs	AX-10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs	AX-15-02BPBP
Analog channels cable set 12x5 m with banana plugs	AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs	AN-10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs	AN-15-02BPBP
Main contact cables
Main contact cables 3 m(9.8 ft)with SCT clamps (for three timing channels)	CM-03-34MXST
Main contact cables 3 m(9.8 ft)with SCT clamps (for six timing channels)	CM-03-65MXST
Main contact cables 3 m(9.8 ft)with SCT clamps (for twelve timing channels	CM-03-12MXST
Main contact cables 3 m(9.8 ft)with alligator clamps (for three timing channels)	CM-03-34MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for three timing channels)	CM-05-34MXA2
Main contact cables 3 m(9.8 ft)with alligator clamps (for six timing channels	CM-03-65MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for six timing channels)	CM-05-65MXA2
Main contact cables 3 m(9.8 ft)with alligator clamps (for twelve timing channels)	CM-03-12MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps (for twelve timing channels)	CM-05-12MXA2
Main contact cables extension
Main contact cables Extension 5 m(16.4 ft)(for three or six timing channels)	E3-05-65MXFX
Main contact cables Extension 5 m(16.4 ft)(for twelve timing channels)	E6-05-12MXFX
Main contact cables Extension 15 m(49.2 ft)(for three or six timing channels)	E3-15-65MXFX
Main contact cables Extension 15 m(49.2 ft)(for twelve timing channels	E6-15-12MXFX
Current cables
Current cables 2x5 m 50 mm²(32.8 ft,0 AWG)with battery clamps (f or built in 500 A micro ohmmeter)	C2-05-50VMB3
Current cables 2x15 m 70 mm²(49.2 ft,00 AWG)with battery clamps (f or built in 500 A micro ohmmeter)	C2-15-70VMB3
Current cables 2x5 m 25 mm²(32.8 ft,3 AWG)with battery clamps (f or built in 200 A micro ohmmeter)	C2-05-25LMB1
Current cables 2x15 m 35 mm²(49.2 ft,2 AWG)with battery clamps (f or built in 200 A micro ohmmeter)	C2-15-35LMB1

Sense cables
Sense cables 2x5 m(32.8 ft)with alligator clamps (f or built in micro ohmmeter)	S2-05-02BPA1
Sense cables 2x15 m(49.2 ft)with alligator clamps ( for built in micro ohmmeter)	S2-15-02BPA1
Transducers
Digital rotary transducer with 5 m(16.4 ft)connection cable	DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft)connection cable	DRT-250-C610
Digital rotary transducer with 5 m(16.4 ft)connection cable with accessories	DRT-SET-0005
Digital rotary transducer with 10 m(32.8 ft)connection cable with accessories	DRT-SET-0010
Linear analog transducer 150 mm (5.9 in)with 5 m(16.4 ff)connection cable	LAT-150-C305
Linear analog transducer 225 mm (8.85 in)with 5 m(16.4 ft)connection cable	LAT-225-C305
Linear analog transducer 300 mm (11.8 in)with 5 m(16.4 ft)connection cable	LAT-300-C305
Linear analog transducer 500 mm (19.68 in)with 5 m(16.4 ft)connection cable	IAT-500-C305
Current clamp 30/300 A power supplied from the instrument with adapter 5 m	CACL-0300-07
AC Current clamp 1 A/1 V and cable 5 m with banana plugs	CACL-ACBP-05
Online first trip test kit -single-pole control	ONFTT-KIT-00
Online first trip test kit -three-pole control	ONFTT-KIT-01
Transducer mounting kits
Universal transducer mounting kit	UTM-KIT-0000
Universal transducer mounting kit -extended version	UTM-KIT-0001
Mounting bracket for analog linear transducer	LAT-MNTB-000
Doble transducer adapter	DTA-BOX-C002
Linear to rotary convertor	LTR-CON-0000

CAT250断路器分析仪和计时器规格
电源供应
根据 IEC/EN60320-1; UL498, CSA 22.2连接
电源	90 V - 264 V AC
频率	50/60 Hz
I输入功率	3900 VA
保险丝15 A / 250 V，快速反应，但不是用户可更换
适用标准
安装/过电压	第二类
污染	2度
安全	LVD 2014 / 35 /欧盟（CE符合）标准EN 61010-1
EMC	指令2014 / 30 /欧盟（CE符合标准EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
环境条件
操作温度	-10 ºC - + 55 ºC / 14 ºF - +131 ºF
存储和运输	-40 ºC - + 70ºC / -40 ºF - +158 ºF
湿度	度5% - 95%相对湿度
尺寸/重量
尺寸(宽 x 高 x 深):	505 mm x 409 mm x 257 mm 18.89 in x 7.75 in x 15.55 in
重量	13.2 kg / 29.1 lbs
