Included accessories

Windows based DV-Win PC software including USB cable

Mains power cable

Ground (PE) cable

Plastic transport case

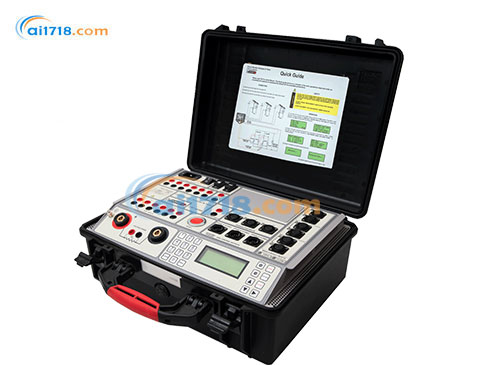

瑞典DV Power CAT125断路器分析仪和计时器由爱仪器仪表网代理，CAT125是可以是单机控制或通过PC控制，来评估断路器状态的数字化仪器。现在热卖中，如需购买，可通过ai1718.com的客服热线联系我们！

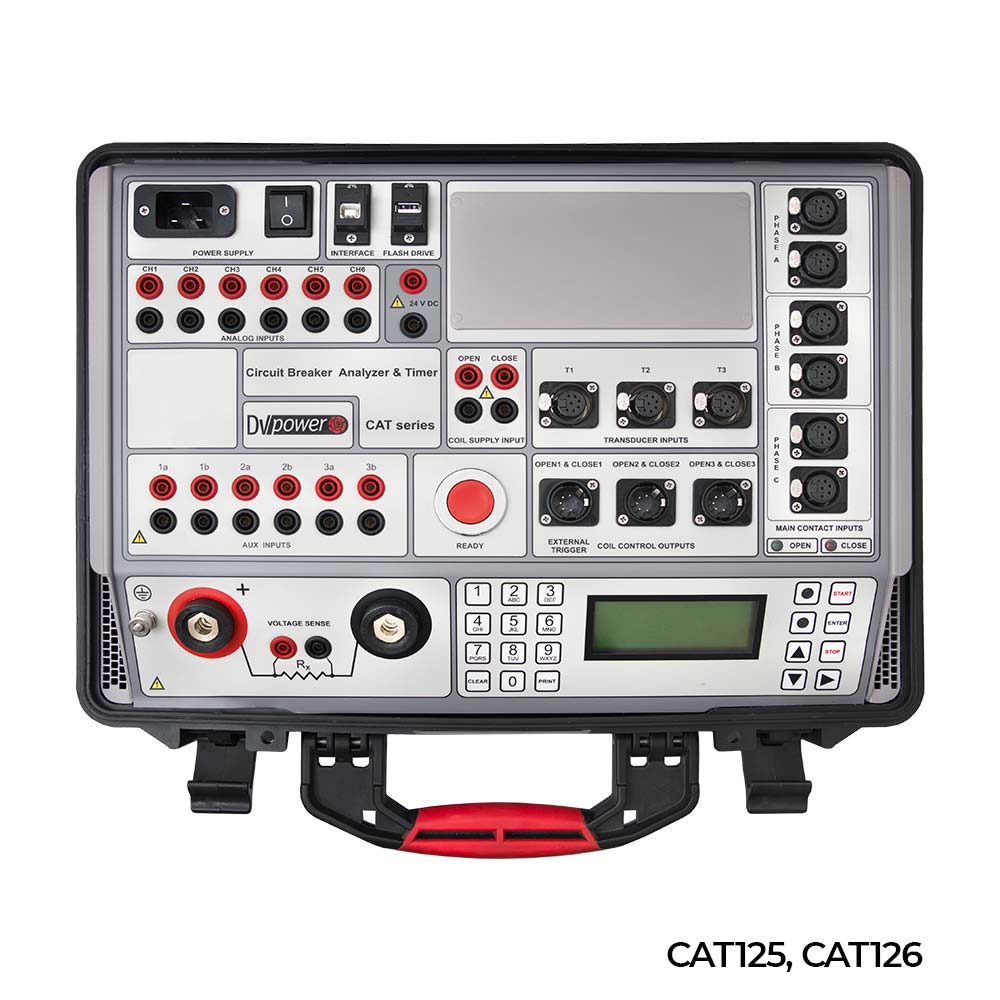

CAT125断路器分析仪和计时器简介：
•CAT125是可以是单机控制或通过PC控制，来评估断路器状态的数字化仪器。
•CAT125坚固耐用的设计结合了**的技术与*新的增强功能，为中压或高压的瓷柱式断路器和落地罐式断路器安全快速检测而设计。
•CAT125用户可以选择任何想要的操作模式：关闭（C）打开（O），闭-开（CO），开闭（OC），开-关-开（OCO）。
•CAT125测试结果可以存储在仪器内部的存储器，U盘或以表格和图表的形式通过热敏打印机打印出来。

CAT125断路器分析仪和计时器应用：
可进行对所有断路器的应用程序列表：
•高达12个主触头同步定时测量（每相4个）
•包括合闸电阻（如果在电路断路器存在的话）和6辅助触点
•合闸电阻测量（如果在断路器存在的话）
•评估断路器各极间的同步性
•同时对4线圈电流的分析（3打开和1闭合线圈）
•通过图形显示的电压值评价的变电站电池状态
•位移，触头接触，超程，回弹，阻尼时间和断路器运动部件的平均速度测量
•*次跳闸测试
•静态接触电阻测量（测试电流高达500A）
•动态电阻测量（测试电流高达500A）
•在落地罐式断路器磁心去磁（CAT66D可配置）

BSG（双端接地）
•BSG功能使安全和快速测试在高电压变电站的断路器，而不断开在断路器的两侧安全地连接。
•不需要额外的模块或远程模组。
•当两个端子是接地的，每个主触点定时通道能检测主触点的状态。

*次跳闸测试
•“*次跳闸”是非常重要的分析断路器的线圈运行情况。
•断路器在其使用周期中，基本其大部分时间不会进行任何的操作。
•一旦保护继电器检测到问题时，断路器虽然已经无任何操作也许一年或更长的时间，但这时需要尽可能快地动作。
•然而，如果断路器经常没有被操作或动作时，此时弹簧锁摩擦可能会增加。
关于弹簧锁摩擦或其他部件的信息，可从“*次”试验期间记录的线圈电流波形来获得。

静态/接触电阻测量
•内置微欧姆表通过自动调节测试坡度，生成一个真正的直流无纹波电流。
•电阻测量是用众所周知的开尔文的四点法。直流电流通过闭合断路器触点生成。电压降是通过测量断路器的端子之间得到。
•该电阻用欧姆定律R=U/I计算。

DRM（动态电阻测量）
•这种内置微欧姆表，也可以用于DRM动态电阻测量。
•在DRM测试时，通过注入电流流过断路器触头，并同时监测操作期间的整个断路器触点上的电压降。
•动态电阻曲线可用于表征或分析电弧触头的故障状态。
•测试电流应至少为100A，以提供较高的电压降，以便更容易的检测电弧触头。
•DRM测试需要断路器测试分析仪具有非常高的分辨率，从而进行测试。
DRM（动态电阻测量）

DC接触电阻测量后的电流互感器铁芯去磁
•直流电流测试断路器或母线后，相关的电流互感器的磁芯可能保持磁化（剩磁）。为了消除潜在的这个问题，应该使用可提供去磁功能的仪器来完成去磁。

CAT125利用*新的增强功能及安全快速检测，具有独特的技术能力可附加诊断断路器。精巧的设计，确保在高电压变电站和工业环境的操作效率和可靠性。

主要接触和合闸电阻，定时通道	12
辅助触点定时通道	6
线圈控制	YES
线圈电流测量通道	4
模拟输入通道	4
传感器输入通道	3
热敏打印机（内置）	可选
*次跳闸测试	YES
双边接地	YES
微欧姆计	NO
动态电阻测试	NO
CT去磁	NO

CAT125订购信息
Instrument					Article No
Circuit Breaker Analyzer & Timer CAT35					CAT3500-N-01
Circuit Breaker Analyzer & Timer CAT36					CAT3600-N-01
Circuit Breaker Analyzer & Timer CAT64A					CAT64A0-N-01
Circuit Breaker Analyzer & Timer CAT65					CAT6500-N-01
Circuit Breaker Analyzer & Timer CAT66					CAT6600-N-01
Circuit Breaker Analyzer & Timer CAT124A					CAT124A-N-01
Circuit Breaker Analyzer & Timer CAT125					CAT1250-N-01
Circuit Breaker Analyzer & Timer CAT126					CAT1260-N-01

Standard accessories					Article No
Main contact cables
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT35, CAT36)					CM-05-34MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXST
Main contact cables 5 m (16.4 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXST
Main contact cables extension
Main contact cables extension 10 m (32.8 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3- 10-65MXFX
Main contact cables extension 10 m (32.8 ft) (for CAT124A, CAT125, CAT126)					E6- 10- 12MXFX
Control cabinet cables
Coil control cable set 5 m (16.4 ft) with banana plugs (Single-pole control -6 coil channels)					CO-05-6BC5B1
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (red) (x 6)					JCR- 15-2REBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs with retractable isolation (black) (x 6)					JCB- 15-2REBP
Test probe with grip jaws (black) (x 3)					TESTPR-GJ-B0
Test probe with grip jaws (red) (x 3)					TESTPR-GJ-R0
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Auxiliary contacts cable set 12 x 5 m (16.4 ft) with banana plugs					AX-05-02BPBP
Analog channels cable set 12 x 5 m (16.4 ft) with banana plugs					AN-05-02BPBP
Current cables
Current cables 2 x 10 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 10-50VMB3
Current cables 2 x 10 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 10-25VMB1
Sense cables
Sense cables 2 x 10 m (32.8 ft) with alligator clamps (for CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)					S2- 10-02BPA1
Cable cases
Cable plastic case - large size (x 2)					CABLE-CAS-03

Optional accessories and features				Article No
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT3x Advanced series (3 channels - one break per phase) (available with CAT35 and CAT36)				BSG-CATII-00
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Live Tank Circuit Breaker for CAT6x and CAT12x Advanced series (6 channels - two breaks per phase) (available with CAT65, CAT66, CAT125 and CAT126)				BSG-CATII-01
Both Sides Grounded (BSG) of AIS (Air Insulated Substation) Dead Tank Circuit Breaker for CAT Advanced series (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				BSG-CATDTB-0
BSG on GIS feature for CAT Advanced series (available with CAT36, CAT66 and CAT126)				BSG-CATGIS-0
Current cables with branch connectors 2 x (3 x 5 m, 16 mm2) with SCT clamps				C6BC-05-16GMST
Extension cables 2 x 5 m 50 mm2				E2-05-50VMVF
AC Current clamp 1 A / 1 V and cable 5 m with banana plugs				CACL-ACBP-05
Built-in high precision measurement module (available with CAT35, CAT36, CAT65, CAT66, CAT125 and CAT126)				RMO-HPMM-DG0
Current clamp 30/300 A power supplied from the instrument with adapter 5 m (16.4 ft)				CACL-0300-07
Current clamp 30/300 A with internal battery supply and extension 5 m (16.4 ft)				CACL-0300-08
Thermal printer 112 mm (4.4 inch) (built-in)				PRINT- 112-01
Thermal paper roll				PRINT- 112-RO
Cable plastic case with wheels - large size				CABLE-CAS-W3

Control cabinet cables
Coil control cable set 10 m with banana plugs (Single-pole control -6 coil channels)					CO- 10-6BC5B1
Coil control cable set 15 m with banana plugs (Single-pole control -6 coil channels)					CO- 15-6BC5B1
Coil control cable 5 m with banana plugs (Three-pole control - 2 coil channels)					CO-05-00C5B1
Coil control cable 10 m with banana plugs (Three-pole control - 2 coil channels)					CO- 10-00C5B1
Coil control cable 15 m with banana plugs (Three-pole control - 2 coil channels)					CO- 15-00C5B1
Coil supply cable set 4 x 2 m 2,5 mm2 (6.5 ft, 13 AWG) with banana plugs					CS-02-02BPBP
Coil supply cable set 4 x 5 m 2,5 mm2 (16.4 ft, 13 AWG) with banana plugs					CS-05-02BPBP
Coil supply cable set 4 x 10 m 2,5 mm2 (32.8 ft, 13 AWG) with banana plugs					CS- 10-02BPBP
Coil supply cable set 2 x 2 m 2,5 mm2 with banana plugs					C2-02-02BPBP
Coil supply cable set 2 x 5 m 2,5 mm2 with banana plugs					C2-05-02BPBP
Coil supply cable set 2 x 10 m 2,5 mm2 with banana plugs					C2- 10-02BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (black)					JCB- 15-2BPBP
Jumper cable 1 x 15 cm 2,5 mm2 with banana plugs (red)					JCR- 15-2BPBP
Auxiliary contacts cable set 12 x 5 m with banana plugs					AX-05-02BPBP
Auxiliary contacts cable set 12 x 10 m with banana plugs					AX- 10-02BPBP
Auxiliary contacts cable set 12 x 15 m with banana plugs					AX- 15-02BPBP
Analog channels cable set 12 x 5 m with banana plugs					AN-05-02BPBP
Analog channels cable set 12 x 10 m with banana plugs					AN- 10-02BPBP
Analog channels cable set 12 x 15 m with banana plugs					AN- 15-02BPBP
Main contact cables
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT35, CAT36)					CM-03-34MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXST
Main contact cables 3 m (9.8 ft) with SCT clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXST
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT35, CAT36)					CM-03-34MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT35, CAT36)					CM-05-34MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-03-65MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT64A, CAT65, CAT66)					CM-05-65MXA2
Main contact cables 3 m (9.8 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-03- 12MXA2
Main contact cables 5 m (16.4 ft) with alligator clamps (for CAT124A, CAT125, CAT126)					CM-05- 12MXA2
Main contact cables extension
Main contact cables Extension 5 m (16.4 ft) (for CAT35, CAT36, CAT64A, CAT65, CAT66)					E3-05-65MXFX
Main contact cables Extension 5 m (16.4 ft) (for CAT124A, CAT125, CAT126)					E6-05- 12MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT35, CAT64A, CAT65, CAT66)					E3- 15-65MXFX
Main contact cables Extension 15 m (49.2 ft) (for CAT124A, CAT125, CAT126)					E6- 15- 12MXFX
Current cables
Current cables 2 x 5 m 50 mm2 (32.8 ft, 0 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2-05-50VMB3
Current cables 2 x 15 m 70 mm2 (49.2 ft, 00 AWG) with battery clamps (for CAT36, CAT66 and CAT126)					C2- 15-70VMB3
Current cables 2 x 5 m 25 mm2 (32.8 ft, 3 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2-05-25VMB1
Current cables 2 x 15 m 35 mm2 (49.2 ft, 2 AWG) with battery clamps (for CAT35, CAT65 and CAT125)					C2- 15-35VMB1
Sense cables
Sense cables 2 x 5 m (32.8 ft) with alligator clamps A2					S2-05-02BPA2
Sense cables 2 x 15 m (49.2 ft) with alligator clamps A2					S2- 15-02BPA2

Transducers
Digital rotary transducer with 5 m (16.4 ft) connection cable					DRT-250-C605
Digital rotary transducer with 10 m (32.8 ft) connection cable					DRT-250-C610
Digital rotary transducer with 5 m (16.4 ft) connection cable with accessories					DRT-SET-0005
Digital rotary transducer with 10 m (32.8 ft) connection cable with accessories					DRT-SET-0010
Linear analog transducer (TLH) 150 mm (5.9 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT- 150-C305
Linear analog transducer (TLH) 225 mm (8.85 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-225-C305
Linear analog transducer (TLH) 300 mm (11.8 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-300-C305
Linear analog transducer (TLH) 500 mm (19.68 in) with 5 m (16.4 ft) connection cable and linear transducer rod					LAT-500-C305
Three phase digital rotary transducer kit (with 5 m connection cable)					TPH-DRTS-005
Online first trip test kit - Three-pole control for CAT Advanced series					ONFTT-KIT-01
Online first trip test kit - Single-pole control for CAT Advanced series					ONFTT-KIT-00
Transducer mounting kits
Universal transducer mounting kit					UTM-KIT-0000
Universal transducer mounting kit - extended version					UTM-KIT-0001
Doble transducer adapter					DTA-BOX-C002
Big clamping base					UTM-LCB-0080
Small clamping base					UTM-SCB-0030
Articulated arm					UTM-AA-0288
Carrier (L profile) for digital rotary transducer					DRT-CRL-0090
Carrier for analog rotary transducer					ART-CRL-0000
Linear transducer rod					LAT-ROD-0000
Bellow coupling (M6)					DRT-COUP-003
Bellow coupling (M10)					DRT-COUP-001
Magnet					UTM-MAG-0800
Four mechanical adapters 10 mm (M6, M8, M10, M12)					DRT-MADP-004
Four mechanical adapters 6 mm (M6, M8, M10, M12)					DRT-MADP-604

CAT125断路器分析仪和计时器规格
电源供应
根据 IEC/EN60320-1; UL498, CSA 22.2连接
电源	90 V - 264 V AC
频率	50/60 Hz
I输入功率	3900 VA
保险丝15 A / 250 V，快速反应，但不是用户可更换
适用标准
安装/过电压	第二类
污染	2度
安全	LVD 2014 / 35 /欧盟（CE符合）标准EN 61010-1
EMC	指令2014 / 30 /欧盟（CE符合标准EN 61326-1:2006）
CAN/CSA-C22.2 No. 61010-1
环境条件
操作温度	-10 ºC - + 55 ºC / 14 ºF - +131 ºF
存储和运输	-40 ºC - + 70ºC / -40 ºF - +158 ºF
湿度	度5% - 95%相对湿度
尺寸/重量
尺寸(宽 x 高 x 深):	480 mm x 197 mm x 395 mm 18.89 in x 7.75 in x 15.55 in
重量	12,9 kg / 28.4 lbs
