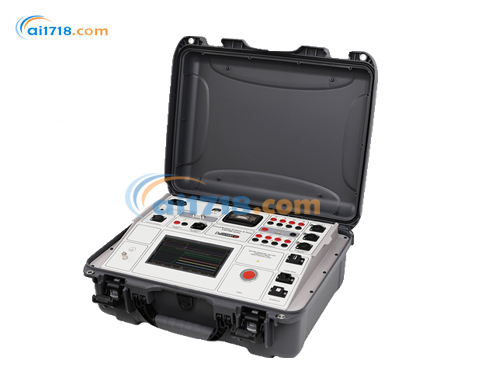

瑞典DVPOWER CAT100 支架分析仪和支架由爱仪器仪表网代理，CAT100 系列继承了市场*的 CAT 标准系列的所有功能和经验。现在热卖中，如需购买，可通过ai1718.com的客服热线联系我们！
CAT100 系列继承了市场*的 CAT 标准系列的所有功能和经验。
每个CAT100系列设备（3或6个定时通道）渴望配备内部电池电源，可运行长达8小时。
CAT100引入了独特的触摸屏界面，旨在显着节省所有类型中高压显示器的测试准备和结果分析所需的时间。可以使用独立的CAT100设备通过7英寸彩色触摸屏显示器来分析图形和数字结果。
CAT100系列可以记录：
同时定时测量*多6个主触点（每相2个断路），包括预插入电阻器（如果基座中存在）和四个辅助触点。
预插入电阻器的电阻测量（如果支架中存在）
同时测量两个线圈电流（跳闸和合闸）。
测量多达四个模拟信号（变电池、电机电压或任何其他类型的模拟信号）。
测量关节运动部件的脉动、接触扭矩、超行程、回弹、阻尼时间和平均速度。
测试结果以表格和图形形式打印在 58 毫米（2.28 英寸） 热敏打印机（任选附件）上。
CAT100 订购信息
Instrument
Article No.
Circuit Breaker Analyzer &Timer CAT100 with 3 timing channels
CAT100-03-01
Circuit Breaker Analyzer &Timer CAT100 with 3 timing channels (battery operated)
CAT100-B3-01
Circuit Breaker Analyzer &Timer CAT100 with 6 timing channels
CAT100-06-01
Circuit Breaker Analyzer &Timer CAT100 with 6 timing channels (battery operated)
CAT100-B6-01
Included accessories
Article No
Transport case
Windows based DV-CB PC software including USB cable
USB Memory Stick
Ethernet cables
Debug adapter
Mains power cable
Ground (PE)cable
Standard accessories
Article No
Main contact cables 5 m(16.4 ft)with SCT clamps (for CAT100 with 3 timing channels)
CM-05-34MXST
Main contact cables 5 m(16.4 ft)with SCT clamps (for CAT100 with 6 timing channels）
CM-05-65MXST
Main contact cables extension 5 m(16.4 ft
E3-05-65MXFX
Coil control cable 5 m(16.4 ft)with banana plugs
CO-05-00C5B1
Coil supply cable set 2x5m(16.4 ft)2,5 mm²(14 AWG)with banana plugs
C2-05-02BPBP
Jumper cable 1 x15 cm 2,5 mm2 with banana plugs with retractable isolation (red)(x3
JCR-15-2REBP
Jumper cable 1x15 cm 2,5 mm2 with banana plugs with retractable isolation (black)(x3)
JCB-15-2REBP
Auxiliary channels cable set 8x5 m(16.4 ft)with banana plugs
A8-05-02BPBP
Analog channels cable set 8x5 m(16.4 ft)with banana plugs
C8-05-02BPBP
Cable plastic case -medium size
CABLE-CAS-02
Optional accessories
Article No.
Main contact cables 3 m(9.8 ft)with SCT clamps(for CAT100 with 3 timing channels)
CM-03-34MXST
Main contact cables 3 m(9.8 ft)with SCT clamps(for CAT100 with 6 timing channels)
CM-03-65MXST
Main contact cables 3 m(9.8 ft)with alligator clamps(A2)(for CAT100 with 3 timing channels）
CM-03-34MXA2
Main contact cables 3 m(9.8 ft)with alligator clamps(A2)(for CAT100 with 6 timing channels）
CM-03-65MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps(A2)(for CAT100 with 3 timing channels）
CM-05-34MXA2
Main contact cables 5 m(16.4 ft)with alligator clamps(A2)(for CAT100 with 6 timing channels）
CM-05-65MXA2
Main contact cables extension 10 m(32.8 ft)
E3-10-65MXFX
Main contact cables extension 15 m(49.2 ft)
E3-15-65MXFX
Coil control cable 10 m (32.8 ft)with banana plugs
CO-10-00C5B1
Coil control cable 15 m(49.2 ft)with banana plugs
CO-10-00C5B1
Coil supply cable set 2x10 m(32.8 ft)2,5 mm²(14 AWG)with banana plugs
C2-10-02BPBP
Auxiliary channels cable set 8x5 m(16.4 ft)with banana plugs
A8-05-02BPBP
Auxiliary channels cable set 8x 10 m(16.4 ft)with banana plugs
A8-10-02BPBP
Analog channels cable set 8x5 m(16.4 ft)with banana plugs
C8-05-02BPBP
Analog channels cable set 8x10 m(16.4 ft)with banana plugs
C8-10-02BPBP
Current clamp 30/300 A power supplied from the instrument with adapter 5 m(16.4 ft)
CACL-0300-07
Current clamp 30/300 A with intemal battery supply and extension 5 m(16.4 ft)
CACL-0300-08
Small current clamp 10/100 A with intemal battery power supply and extension 5 m(16.4 ft)
CACL-0100-01
Digital rotary transducer 5 m(16.4 ft)with accessories
DRT-SET-0005
Digital rotary transducer 10 m (32.8 ft)with accessories
DRT-SET-0010
Linear analog transducer (TLH)150 mm (5.9 in)with 5 m(16.4 ft)connection cable and
linear transducer rod
LAT-150-C305
Linear analog transducer (TLH)225 mm (8.9 in)with 5 m(16.4 ft)connection cable and
inear transducer rod
LAT-225-C305
Linear analog transducer (TLH)300 mm(11.8 in)with 5 m(16.4 ft)connection cable
and linear transducer rod
LAT-300-C305
Linear analog transducer (TLH)500 mm(19.7 in)with 5 m(16.4 ft)connection cable
and linear transducer rod
LAT-500-C305
Universal transducer mounting kit
UTM-KIT-0000
Universal transducer mounting kit -extended version
UTM-KIT-0001
Linear to rotary convertor
LTR-CON-0000
Doble transducer adapter with 5 m(16.4 ft)connection cable
DTA-005-C602
Doble transducer adapter with 10 m(32.8 ft)connection cable
DTA-010-C602
Doble transducer adapter with 15 m(49.2 ft)connection cable
DTA-015-C602
Thermal printer 58 mm (2.28 in)(built-in)
PRINT-058-01
Thermal paper roll 58 mm (2.28 in)
PRINT-058-RO
Cable plastic case -small size
CABLE-CAS-01
Cable plastic case -medium size
CABLE-CAS-02
Cable plastic case -large size
CABLE-CAS-03
Cable plastic case with wheels -medium size
CABLE-CAS-W2
Cable plastic case with wheels -large size
CABLE-CAS-W3
Test probe with grip jaws (black)
TESTPR-GJ-B0
Test probe with grip jaws (red)
TESTPR-GJ-R0
Test probe with split test clamps (black)
TESTPR-SC-B0
Test probe with split test clamps (red)
TESTPR-SC-R0
Dolphin clip (black)
DOLPIN-CL-B0
Dolphin clip (red)
DOLPIN-CL-R0
| CAT100支架分析仪和支架 | |
| 电源供应 |
|
| 根据 IEC/EN60320-1; UL498, CSA 22.2连接 |
|
| 电源 | 90 V - 264 V AC |
| 频率 | 50/60 Hz |
| I输入功率 | 250 VA |
| 保险丝15 A / 250 V，快速反应，但不是用户可更换 |
|
| 适用标准 |
|
| 安装/过电压 | 第二类 |
| 污染 | 2度 |
| 安全 |
LVD 2014 / 35 /欧盟（CE符合） 标准EN 61010-1 |
| EMC |
指令2014 / 30 /欧盟（CE符合标准EN 61326-1:2006） |
| CAN/CSA-C22.2 No. 61010-1 |
|
| 环境条件 |
|
| 操作温度 | -20 ºC - + 55 ºC / 14 ºF - +131 ºF |
| 存储和运输 | -40 ºC - + 70ºC / -40 ºF - +158 ºF |
| 湿度 | 度5% - 95%相对湿度 |
| 尺寸/重量 |
|
| 尺寸(宽 x 高 x 深): |
503 mm x 406 mm x 193 mm 19.89 in x 15.9 in x 7.6 in |
| 重量 | 12,9 kg / 28.4 lbs |
| CAT100 支架分析仪和支架说明文档 |
|
|
|
|
-
