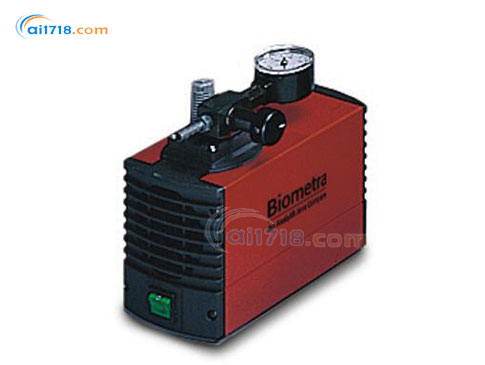

德国Analytikjena(耶拿) Biometra MP86真空隔膜泵是德国耶拿公司生产的先进可靠的真空隔膜泵。现在热卖中,如需购买,可联系我们!
产品简介:
·Vacuum pump for laboratory use
·End vacuum 100 mbar
·Max. delivery 6 l/min
·High vapor and condensate tolerance
·All membrane vacuum pumps are gas-tight, 100 % oil-free, maintenance-free and quiet.
·Typical applications for the use of MP86 are evacuation and transfer of air, gases and vapors (e.g. Vacu-Blot, Dot Blot, Hybri-Slot 24,
·The Convertible) or vacuum filtration.
·All pumps are provided with an adjustable vacuum gauge and manometer.
·For use in combination with instruments without buffer tanks (e.g. Hybri-Dot 96, Hybri-Slot 24,
·The Convertible) we recommend the use of an separator (Woulff bottle) connected to the pump inlet to prevent contamination of the pump with liquids
泵型号 | MP86 | MP26/System I | MP20/System II | MP40/System III |
*大能力 | 6 l/min | 19 l/min. | 20 l/min. | 34 l/min. |
*终真空 | 100 mbar abs | 35 mbar abs | 8 mbar abs | 8 mbar abs |
*大连续压力 | 2.4 bar | 1 bar | 1 bar | 1 bar |
允许室温 | +5℃~40℃ | +5℃~40℃ | +5℃~40℃ | +5℃~40℃ |
允许气体温度 | +5℃~40℃ | +5℃~40℃ | +5℃~40℃ | +5℃~40℃ |
主机重量 | 1.9 kg | 5.8 kg | 3.3 kg | 12.6 kg |
电源供应 | 230V/50Hz | 230V/50Hz | 230V/50Hz | 230V/50Hz |
消耗功率 | 65W | 170W | 120W | 200W |
Fuse Pump (2 x) T | 1.0A | -- | 1.6A | 3.15A |
选购指南
泵型号 |
最大输出 标准大气压 |
最后真空 (绝对压力) |
Recommended for use with | |||||||
Minidry D61 |
Mididry D62 |
Maxidry D64 |
Vacu- Blot |
Dot Blot 96 | Hybri-Dot 96 | Hybri-Slot 24 |
The Convertible |
|||
MP86 | 6 l/min | 100 mbar | - | - | - | + | + | + | + | + |
MP26 | 19 l/min | 35 mbar | + | (+) | - | - | - | - | - | - |
MP20 | 20 l/min | 8 mbar | + | + | - | - | - | - | - | - |
MP40 | 34 l/min | 8 mbar | + | + | + | - | - | - | - | - |
订货信息
产品编号 | 产品描述 |
049-000 | Membrane vacuum pump MP86 with adjustable vacuum gauge and manometer, end vacuum 100 mbar, max. delivery 6 l/min, 230 V, 50 Hz |
049-100 |
Membrane vacuum pump MP26 with adjustable vacuum gauge, manometer and 1 m vacuum tubing, end vacuum 35 mbar, max. delivery 19 l/min, 230 V, 50 Hz |
049-300 |
Membrane vacuum pump MP20 with adjustable vacuum gauge, manometer and 1 m vacuum tubing, end vacuum 8 mbar, max. delivery 20 l/min, 230 V, 50 Hz |
049-400 | Membrane pump system II (230V, 50 Hz), incl. MP20, separator, baseplate, holder for separator and 1 m vacuum tubing |
049-500 |
Membrane vacuum pump MP40 with adjustable vacuum gauge, manometer and 1 m vacuum tubing, end vacuum 8 mbar, max. delivery 34 l/min, 230 V, 50 Hz |
049-600 | Membrane pump system III (230V, 50 Hz), incl. MP40, separator, baseplate, holder for separator and 1 m vacuum tubing |
049-002 | Vacuum tubing for MP86 (2 x 1 m) |
049-201 | Separator (Woulff‘s bottle) for connecting to MP26 and MP86 |
049-102 | Vacuum tubing for MP26, MP20 and MP40 (2 x 1 m) |
049-401 | Baseplate for MP20 |
049-601 | Baseplate for MP40 |
-
