产品简介:
·Compact benchtop thermomixer for all applications requiring heating and / or shaking in microtubes up to 2.0 ml.

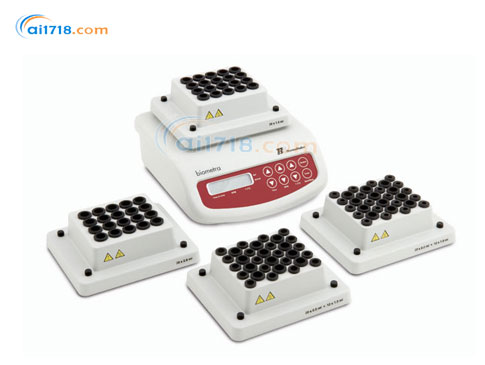

·Interchangeable block modules for MTP and microtubes up to 2.0 ml
·Three instruments in one: thermoshaker, incubator without shaking and shaker without temperature control
·Temperature range: RT + 5°C to 100°C
·The ThermoShaker TS1 is a variable speed and variable temperature microtube thermomixer.
·Combining the incubation phase with the mixing operation produces multiple benefits: reduction of reaction process times, reduction of operator's workload and increasing efficiency of many procedures (e.g. transformation of bacterial cells).
·Five interchangeable block modules are available to meet the needs of most laboratory procedures for 0.2 ml, 0.5 ml, 1.5 ml and 2.0 ml microtubes as well as 96 well microtiter plates (MTP).
·The variable shaking speed from 250 to 1.400 rpm combined with the 2 mm shaking orbitand the soft start function allows gentle to vigorous mixing.
·The high quality motor allows regulated and reproducible rotation throughout the speed range.
·Shaking can be configured for continuous or timed operation with buzzer and automatic switch-off.
·The ThermoShaker TS1 is designed for easy operation.
·Temperature, speed and time are indicated on the two-line display for both set and actual values.
·The apparatus is very compact, with a low profile and small footprint of 205 x 230 x 130 mm (W x D x H). Additonally the low voltage power supply enables safe cold room or incubator operation.
Products | ThermoShaker TS1 | |
Temperature range | ambient +5°C to 100°C | |
Temperature setting | 25°C - 100°C | |
Nominal regulation accuracy | +/- 0.1°C | |
Temperature stability | ||
Uniformity within the block |
+/- 0.1°C (@ +25°C to +40°C) +/- 1.0°C (@ +40°C to +80°C) +/- 2.0°C (@ +80°C to +100°C) |
|
Uniformity across similar blocks | ||
Shaking speed | 250 - 1,400 rpm | |
Speed setting resolution | 10 rpm | |
Orbit | 2 mm | |
Heat up time | RT -37°C |
7 min (pre-heating of system) approx. 15 min (average, including temperature stabilisation) |
25°C - 100°C | ||
30°C - 130°C | ||
Capacity | 1 interchangeable microtube block module | |
Block module capacity |
20 x 1.5 ml tubes 20 x 2.0 ml tubes 20 x 0.5 ml + 12 x 1.5 ml tubes 20 x 0.2 ml + 12 x 1.5 ml tubes 96 x 0.2 ml or MTP |
|
Display | 16 x 2 characters, LCD | |
Display resolution | ||
Control LEDs for | ||
Timer |
1 - 5,760 min with automatic switch-off |
|
Timer setting resolution | 1 min | |
Timer signal | ||
External temperature sensor | ||
Additional functions | ||
Overtemperature protection | ||
Dimensions (W x D x H) | 205 mm x 230 mm x 130 mm | |
Weight (with power supply) | 4.0 kg (at max.) | |
Enviroment operating range | +5°C to 40°C (80 % max. relative humidity for temperatures up to 31°C, decreasing linearly to 50% relative humidity at +40°C) | |
Power |
external power supply 12 V, 4.16 A |
|
Power | 12 V (DC)/5 A | |
Block Dimensions (W x D x H) |
产品编号 | 产品描述 |
051-500 | ThermoShaker TS1, 230 V; compact benchtop thermomixer for interchangeable microtube block-modules, without block-module |
Interchangeable Block Modules for TS1 | |
051-510 | Interchangeable block module for 20 x 1.5 ml tubes |
051-511 | Interchangeable block module for 20 x 2.0 ml tubes |
051-512 | Interchangeable block module for 20 x 0.2 ml + 12 x 1.5 ml tubes |
051-513 | Interchangeable block module for 20 x 0.5 ml + 12 x 1.5 ml tubes |
051-514 | Interchangeable block module for 96 x 0.2 ml or MTP (microtiter plate) |
-
