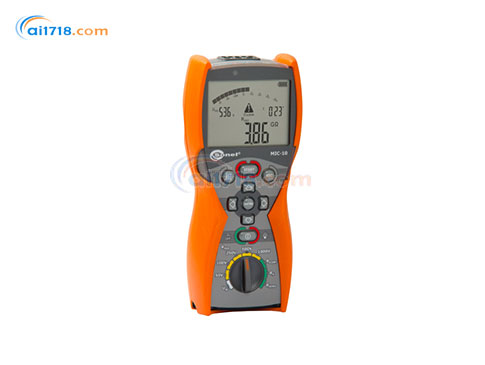

波兰Sonel(索耐)MIC-10绝缘电阻测试仪由爱仪器仪表网代理,本产品selected test voltage: 50, 100, 250, 500, 1000 V,防护等级IP67。现在热卖中,如需购买MIC-10绝缘电阻测试仪,可通过ai1718.com的客服热线联系我们!
MIC-10绝缘电阻测试仪产品简介:
Insulation resistance measurement:
•selected test voltage: 50, 100, 250, 500, 1000 V,
•continuous indication of insulation resistance or leakage current,
•automatic discharge of capacitance of tested object after the insulation resistance measurement,
•acoustic signalling of five-second periods to facilitate obtaining time characteristics,
•indication of actual test voltage during the measurement,
•protection against measuring live objects,
•three-lead measurement.
•Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current
Low-voltage circuit continuity and resistance measurement:
•circuit resistance measurement (<1999 ) with the <15 mA current,
•quick sound signal if circuit resistance is below 30Ω.
•Capacitance measurement during the RISO measurement
•Measurement of alternating and direct voltages in the 0...600 V range.
•Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
•Meter conform to EN 61557.
Electric safety:
•type of insulation: double, according to EN 61010 - 1 and IEC 61557
•measurement category: IV 600 V (III 1000 V) according to EN 61010 - 1
•protection class acc. to EN 60529: IP67
Other technical specifications:
•power suply: 4 alkaline batteries or or battery package Ni-MH
•weight: ~1 kg
•dimentions: 220 x 100 x 60 mm
MIC-10绝缘电阻测试仪产品简介:
Insulation resistance measurement:
•selected test voltage: 50, 100, 250, 500, 1000 V,
•continuous indication of insulation resistance or leakage current,
•automatic discharge of capacitance of tested object after the insulation resistance measurement,
•acoustic signalling of five-second periods to facilitate obtaining time characteristics,
•indication of actual test voltage during the measurement,
•protection against measuring live objects,
•three-lead measurement.
•Continuity measurement of protective and equipotential conductors according to EN 61557 - 4 with the >200 mA current
Low-voltage circuit continuity and resistance measurement:
•circuit resistance measurement (<1999 ) with the <15 mA current,
•quick sound signal if circuit resistance is below 30Ω.
•Capacitance measurement during the RISO measurement
•Measurement of alternating and direct voltages in the 0...600 V range.
•Power supply: 4 AA disposable or rechargeable batteries, monitoring of power supply voltage.
•Meter conform to EN 61557.
Electric safety:
•type of insulation: double, according to EN 61010 - 1 and IEC 61557
•measurement category: IV 600 V (III 1000 V) according to EN 61010 - 1
•protection class acc. to EN 60529: IP67
Other technical specifications:
•power suply: 4 alkaline batteries or or battery package Ni-MH
•weight: ~1 kg
•dimentions: 220 x 100 x 60 mm
