奥地利OMICRON　VOTANO 100便携式电压互感器测试及校准系统

VOTANO 100 Package

incl. all cables and accessories

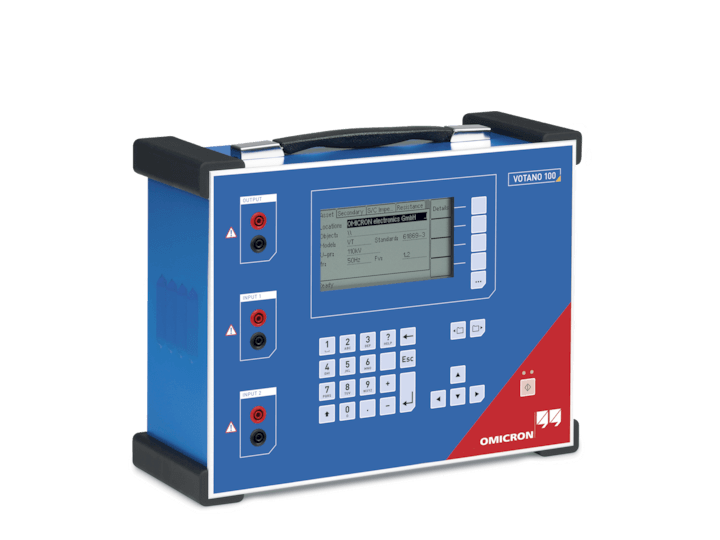

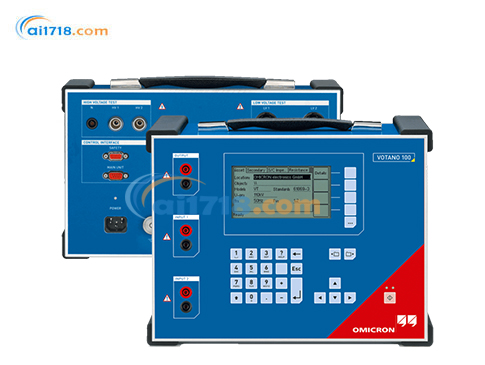

VOTANO 100 device including simple VT/CVT ratio check

P0000747

Available software packages

VOTANO 100 VT Standard

Software Package

Software package for common load and no-load

ratio and phase measurements on VTs

P0006578

VOTANO 100 CVT Standard

Software Package

Software package for common load and no-load

ratio and phase measurements on CVTs

P0006579

VOTANO 100 VT Advanced

Software Package

Software package for complete measurements and

simulation of VTs up to accuracy class 0.1 with

automatic IEC/IEEE class assessment

P0006580

VOTANO 100 CVT Advanced

Software Package

Software package for complete measurements and

simulation of CVTs up to accuracy class 0.1 with

automatic IEC/IEEE class assessment

P0006581

VOTANO 100 VT/CVT Universal

Software Package

Software package for complete measurements and

simulation of VTs and CVTs up to accuracy class 0.1

with automatic IEC/IEEE class assessment

P0006582

Software Upgrade Options, Licenses and Tools

VOTANO 100 VT Standard to

Advanced Upgrade Option

Upgrade option for complete measurements and

simulation of VTs up to accuracy class 0.1 with

automatic IEC/IEEE class assessment

P0006583

VOTANO 100 CVT Standard to

Advanced Upgrade Option

Upgrade option for complete measurements and

simulation of CVTs up to accuracy class 0.1 with

automatic IEC/IEEE class assessment

P0006584

Manufacturer Application

Programming Interface License (API;

only VT testing functions supported)

Software license for usage of the VOTANO 100

Application Programming Interface (API)

P0006802

VOTANO 100 Calibration Suite

(requires VT or CVT Advanced

Software Package)

Device-specific license for usage of

VOTANO 100 and VBO2 calibration tool

P0006801

VOTANO 100 16.7 Hz

Measurement License

Software license for measurement of 16.7 Hz VTs

(Central and Northern European railway grids)

P0006803

C-pider Test

Test module for a detailed test of your CVTs’ capacitor stack

P0007483

Accessories and Cables

Calibration VT

High-precision calibration IVT (0.05% accuracy)

for calibration of VOTANO 100 and VBO2

(calibration certificate ISO / IEC 17025 included)

P0005500

VOTANO 100 Cable Package

Additionally available cables / adapters for the connection

of several secondary windings and burdens

P0006208

Services

Recalibration of Calibration VT

Recommended recalibration of calibration VT every

1-2 years (return shipment included)

P0006037

Calibration of new

VOTANO 100 devices

Optional calibration of new VOTANO 100 devices

according to IEC17025. Certifies accuracy for VT accuracy

class determination and verifies accuracy of low

and high-voltage in- and outputs

P0005953

Recalibration of

VOTANO 100 devices in service

Recommended annual recalibration of VOTANO 100

devices in service according to IEC17025. Certifies

accuracy for VT accuracy class determination and verifies

accuracy of low- and high-voltage in- and outputs

(return shipment included)

P0006038
